Caltta
PH690
In Stock
RRP: From £336.00 ex. VAT
£336.00 From £336.00
Don’t see an option available, or an item is out of stock? Get in touch: 01633 270005
Please specify programming requirements at checkout
Unsure of licence requirements, frequency band, or programming configuration – our team can help
Basic purchase cost includes:
01 x Caltta PH690 hand portable, 01 x antenna, 01 x battery, 01 x belt clip
Item description:

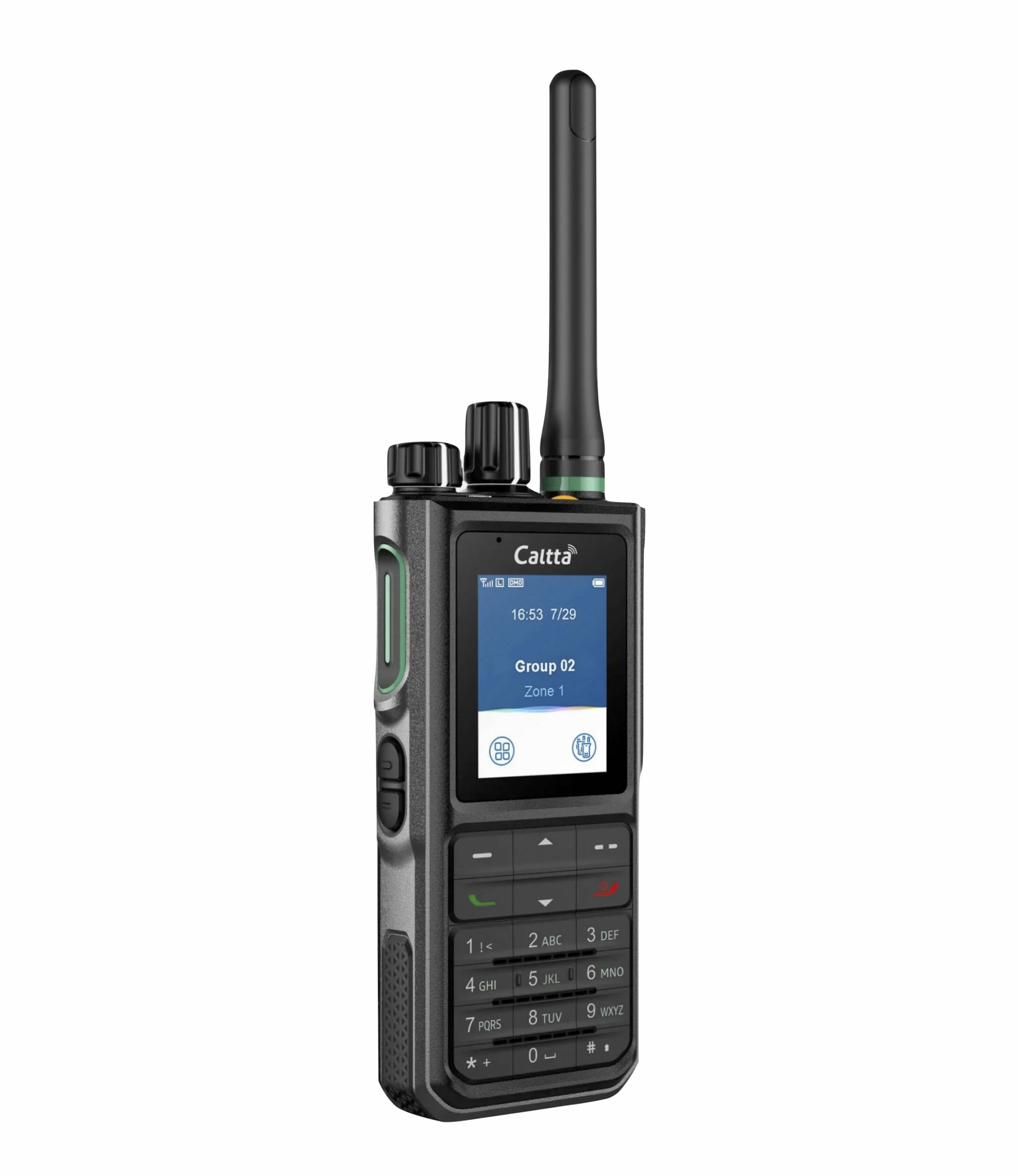

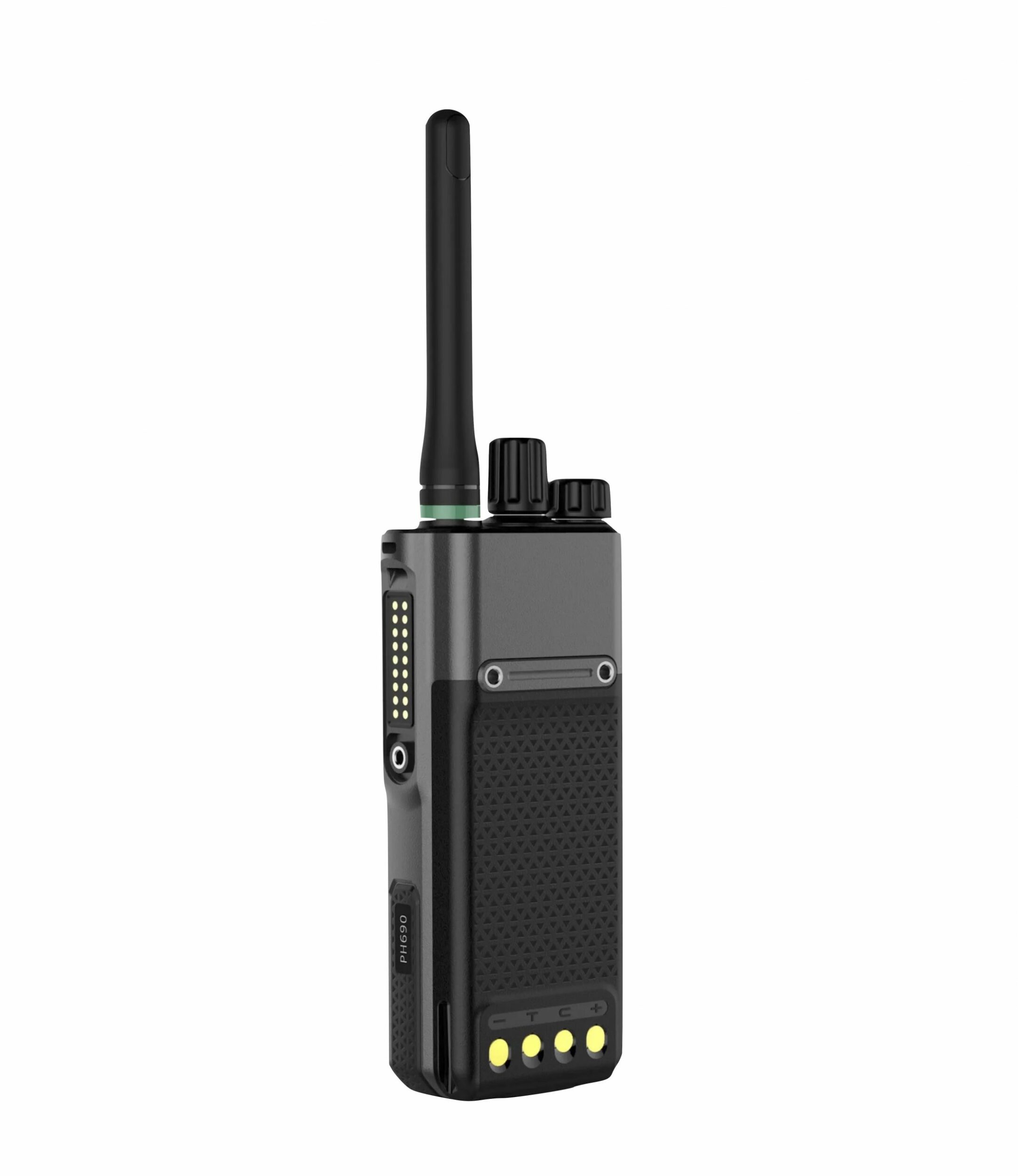

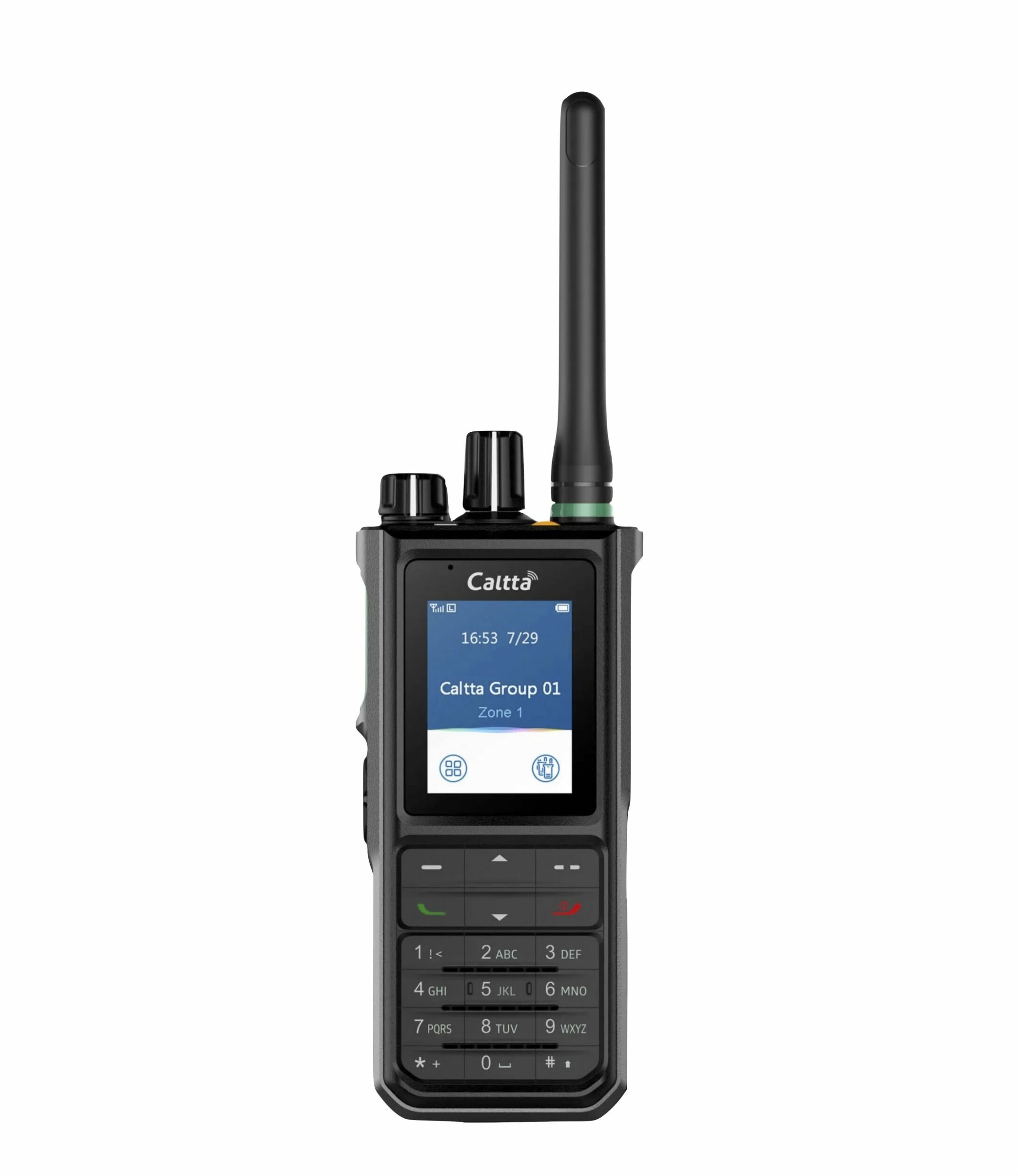

The Caltta PH690 Rugged IP68 Submersible DMR Portable Radio with display and full keypad supports Emergency Calling, Lone Worker, Man Down, GPS Location, and Voice Recording.
Supports DMR Tier 2
Provides high quality voice service. DMR’s dual slot provides double channel capacity, thus easing the shortage of frequency.
True 2 Slots
PH690 can support 2 slots in DMO that double the Capacity of communication. It also supports roaming in IP repeaters’ networks.
Loud and Clear Sound
With carefully optimized audio design, combined excellent audio encoder, it provides loud and clear sound.
Large Capacity Battery
With a 2000mAh battery and power saving of DMR, battery life is long enough for professional communication.
Excellent Man-Machine Interface Design
Based on professional user habits, simple MMI is developed.It helps professional users to operate radio more comfortably.
Abundant Configuration
PH690 supports TF card, GPS, Bluetooth, man-down, real-time clock, vibration, geomagnetic, optional board etc.
Higher Safety
The DMR standard provides higher safety and reliability for voice and data than analogue standard.
Reliable Quality
Meets IP68 standard, and is suitable for outdoor work. Shock, vibration, solar radiation and other indexes meet the MIL-STD-810. It qualifies for all kinds of severe working environments.
Specific Product codes:
2000000016481: PH690 UHF 400-470MHZ 4W display with full keypad, PH690 VHF 136-174MHZ 5W display with full keypad
*Optional feature licence
| Digital Protocol | ETSI TS 102 361-1,-2,-3 |
| Frequency | UHF1: 400-470MHz VHF: 136-174MHz |
| Channel Capacity | 1024 |
| Zone Capacity | 64 |
| Channel Spacing | 12.5kHz/20KHz/25KHz |
| Frequency Stability | ±0.5ppm |
| Operating Voltage | 7.4V |
| Battery Capacity | 2600mAh |
| Battery Life(5:5:90) | Analogue: 14 hours Digital: 18 hours |
| Size (H×W×D) | 126×54.5×32mm |
| Weight | About 310g (With Antenna and Battery) |
| Screen | 2.0’ Transflective LCD, 240×320, 6 Lines Text |
| Vocoder | AMBE++ |
| Bluetooth | Support BT2.1+EDR/4.0 (Optional) |
| Location | GPS Standard |
| Man down | Standard |
| Vibration | Standard |
| TF Card | Support (Optional) |
| Real-time Clock | Standard |
| Optional Board | Support |
| Encryption | Basic Standard – Advanced Encryption (*feature licence key) |
